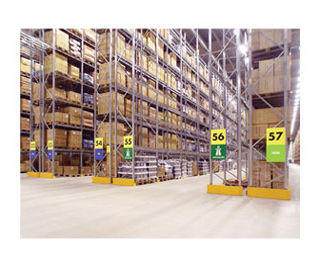

Heavy Duty Pallet Racking |
|
• Versatile, efficient and cost effective pallet racking
for storing palletised unit loads.
• It consists of upright frames and horizontal beams that
interlock to form the racking structure.
• Each pallet is individually accessible.
• Safety pin device on beam ends to prevent accidental
beam removal.
• Supplied as starter bay or Add-on bays suitable for
1200 x 1000mm standard pallets or 1200 x 800mm for Euro
style pallets with the correct safety clearance for the
use of mechanical pallet handling.
• Extra beams available if required.
• Frames and beams come in a galvanised finish.
• 900mm Deep Pallet Racking for Standard Pallets 1200mm
x 1000mm
• 1100mm Deep Pallet Racking for Euro Pallets 1200mm
x 800mm
|
|
|
|
|
|
|
|
|
| Part No | Description | Height | Width | Depth | Beam Capacity per Pair | Levels inc. floor | Standard Pallet Capacity | Price | Buy | Qty |
| 90762 | Starter bay | 4000 | 2700 | 900 | 2,600Kg | 3 | 6 | €380.00 | | |
| 90764 | Add-on bay | 4000 | 2700 | 900 | 2,600Kg | 3 | 6 | €266.00 | | |
| 90766 | Starter bay | 5000 | 2700 | 900 | 2,600Kg | 4 | 8 | €531.00 | | |
| 90768 | Add-on bay | 5000 | 2700 | 900 | 2,600Kg | 4 | 8 | €380.00 | | |
| 90770 | Starter bay | 6000 | 2700 | 900 | 2,600Kg | 5 | 10 | €631.00 | | |
| 90772 | Add-on bay | 6000 | 2700 | 900 | 2,600Kg | 5 | 10 | €467.00 | | |
| 90776 | Starter bay | 4000 | 2700 | 1100 | 2,600Kg | 3 | 9 | €385.00 | | |
| 90778 | Add-on bay | 4000 | 2700 | 1100 | 2,600Kg | 3 | 9 | €267.00 | | |
| 90780 | Starter bay | 5000 | 2700 | 1100 | 2,600Kg | 4 | 12 | €539.00 | | |
| 90782 | Add-on bay | 5000 | 2700 | 1100 | 2,600Kg | 4 | 12 | €385.00 | | |
| 90784 | Starter bay | 6000 | 2700 | 1100 | 2,600Kg | 5 | 15 | €668.00 | | |
| 90786 | Add-on bay | 6000 | 2700 | 1100 | 2,600Kg | 5 | 15 | €475.00 | | |
|
|
|
